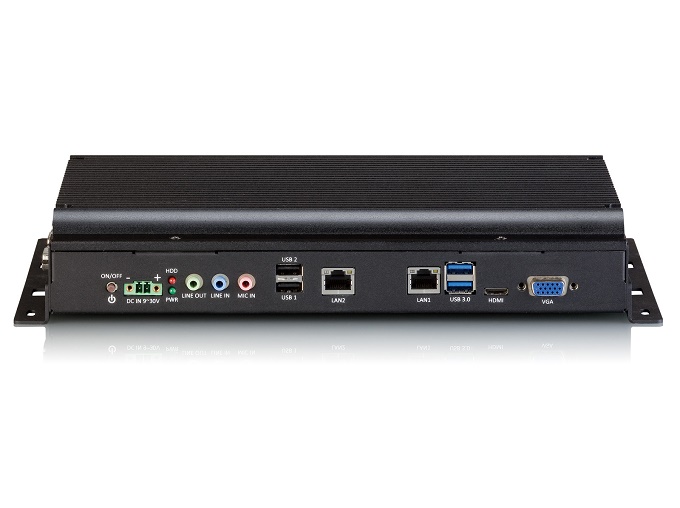

AHD-B5322-C3L2T 车载4G WIFI热点
板载2个SIM卡插座，同时支持2路3G/4G连接// 9V~30V 直流电源输入// 支持双路3G/4G通讯// 可选2路Wi-Fi 、2个 3G/4G通讯或GPS// 3*COM 及 1*GPIO// 支持 VGA 及 HDMI 双独立 显示接口
|
型号 |
AHD-B5322-C3L2T |
|
处理器 |
1.2GHz VIA Nano® X2 E-Series CPU |
|
芯片组 |
VIA VX11H Media System Processor |
|
内存 |
1* DDR3 1333 SODIMM socket Up to 8GB memory size |
|
存储 |
1* 2.5" SATA HDD/SSD 1* mSATA slot |
|
图形芯片 |
Integrated VIA Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration |
|
声音芯片 |
VIA VT2021 High Definition Audio Codec |
|
显示输出 |
1* Mini HDMI port 1* VGA port supporting VGA resolutions up to 2048 x 1536 pixels |
|
网络 |
1*VIA VT6130 PCIe Gigabit Ethernet controller 1* Realtek RTL8111G PCIe Gigabit Ethernet controller |
|
串口 |
Fintek F81865 |
|
内部I/O |
2* miniPCIe slots (supports 2 SIM slots) Supports Wi-Fi/3G modules Supports 3 external antenna for Wi-Fi, 3G module, and GPS module |
|

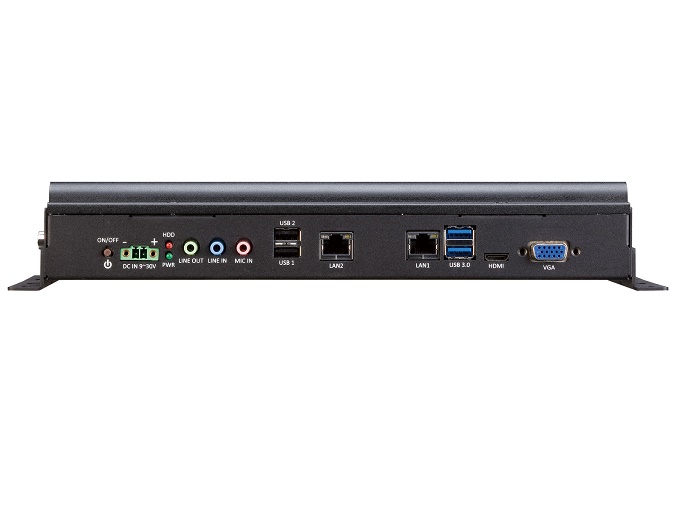

后侧I/O |
2* USB 3.0 ports 2* USB 2.0 ports 1* Mini HDMI port 1* VGA port 2* Gigabit Ethernet ports 3* Audio jacks: Line-out, Line-in and Mic-in 1 Power on/off button 1* Red LED for HDD activity 1* Green LED for power status 1* 2-pole Phoenix DC jack |
|

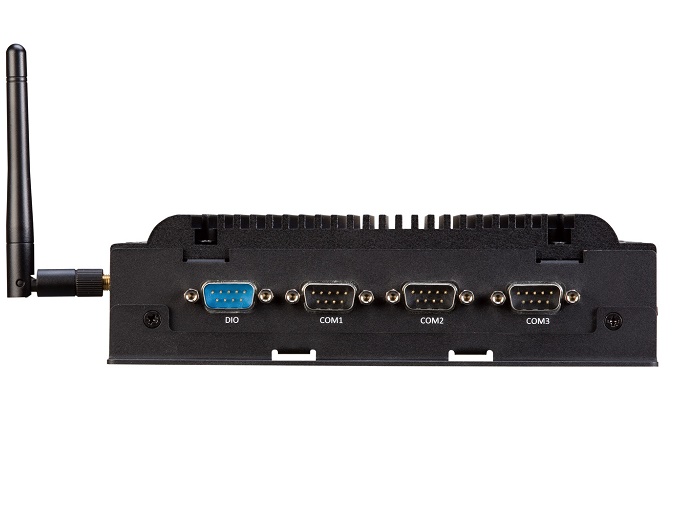

左侧I/O |
1* DIO port for 8-bit GPIO 3* COM ports for RS-232/422/485 (powered by selectable 5V/12V |
|
供电 |
9V ~ 30V DC-in (typical: 27W) |
|
看门狗 |
System reset; programmable 1-255 sec |
|
安装方式 |
Built-in wall mountable brackets on system chassis |
|
物理尺寸 |
311m(W) x 50.6mm(H) x 185mm(D) (with wall mountable brackets) |
|
重量 |
3.5kg (7.7lbs) |
|
工作温度 |
-10°C ~ 60°C (SSD); 0°C ~ 45°C (HDD) |
|
工作湿度 |
-20°C ~ 70°C |
|
储存温度 |
10% ~ 90% @ 45°C (non-condensing) |
|
可选配件 |
WI-FI Module ( 11x5-pin header reserved to support VIA EMIO-1533 USB Wi-Fi module) |
